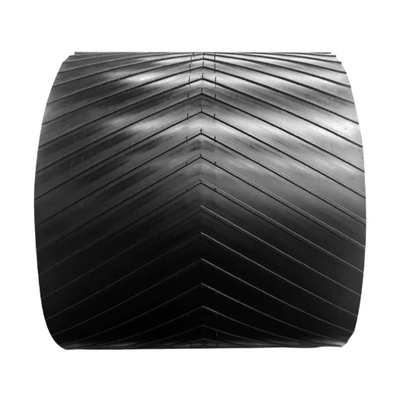

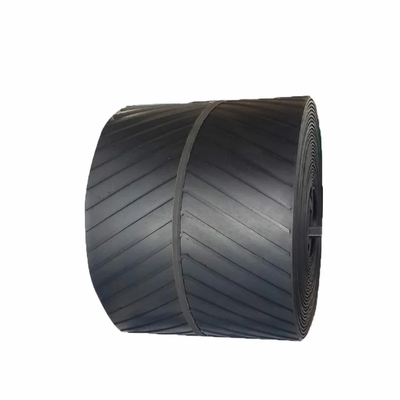

Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle

Name: Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP250/EP300
Price: 54.20 USD
Availability: InStock

Nama merek:	UCER
Nomor Model:	EP250/EP300
MOQ:	100 meter
harga:	dapat dinegosiasikan
Waktu Pengiriman:	10-30 hari
Ketentuan Pembayaran:	L/C,D/P,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Enterprise credit rating AAA

Warna:

Hitam

Bandwidth:

500mm

Ketinggian pola:

15mm

Standar Nasional:

GB/T7984-2001

Bahan inti:

EP/NN/CP

Tipe Pola:

Pola Bergaris

Sudut Kemiringan:

0-40°

Komposisi:

Sabuk dan pola

Kemasan rincian:

Pengepakan besi, rangka besi atau lainnya

Menyediakan kemampuan:

10.000 per bulan

Deskripsi Produk

Herringbone Pattern Black Conveyor Belting 300-800mm Width

High-quality herringbone pattern conveyor belting designed for efficient material handling with excellent grip and durability.

Product Features

Core Material: Ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.
Bandwidth: 300-800mm
Pattern Height: 5, 10, 15, 20mm
Note: Pattern shape can be customized according to user requirements
Key Feature: Suitable for conveying materials with inclination angles of 0-40° to prevent material slippage

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Pattern Types

1) Herringbone Pattern: Features a "herringbone" pattern higher than the belt body, available in open or closed configurations with high, medium, and low variants. Ideal for conveying powdery, granular, and small materials at inclination angles ≤40 degrees, as well as bagged materials.

2) Striped Pattern: Features striped patterns higher than the belt body, available in high, medium, and low variants with sparse or dense arrangements. Suitable for horizontal transportation of packages at inclination angles ≤30 degrees. Can replace herringbone pattern when grooved.

3) Grainy Pattern: Features grain patterns higher than or recessed into the belt body. Pits can be designed as square holes, prismatic, or cloth patterns for various applications.

Composition and Construction

The pattern conveyor belt consists of two main components: the base belt and the pattern surface, engineered for optimal performance and longevity.
