| Tempat asal: | CINA |
|---|---|
| Nama merek: | UCER |
| Sertifikasi: | ISO9001 |
| Nomor model: | S32 S42 S45 S52 S55 S62 S77 S88 A550 A620 |
| Kuantitas min Order: | 50 Meter |
| Harga: | $2.00 - $50.00/ Meter |
| Kemasan rincian: | rantai daun + polybag + kotak individu + kotak kayu |
| Waktu pengiriman: | 45 hari kerja |
| Syarat-syarat pembayaran: | L/C, T/T, D/P, CAD |
| Menyediakan kemampuan: | 10000 Meter per Bulan |
| Nama Produk: | Rantai pertanian rantai mesin beras baja karbon | Warna: | hitam & abu-abu |
|---|---|---|---|
| Fungsi: | Rantai Transmisi | layanan OEM: | Menerima |
| Struktur: | Rantai Roller | Bahan: | baja paduan atau baja tahan karat |
| Nama rantai roller:: | Rantai rantai daun baja produsen | Jenis rantai konveyor:: | rantai dengan lampiran |
| Cahaya Tinggi: | Rantai Pertanian CA620,Rantai Pertanian C2060H,Rantai Rol Baja Karbon Biasa |
||

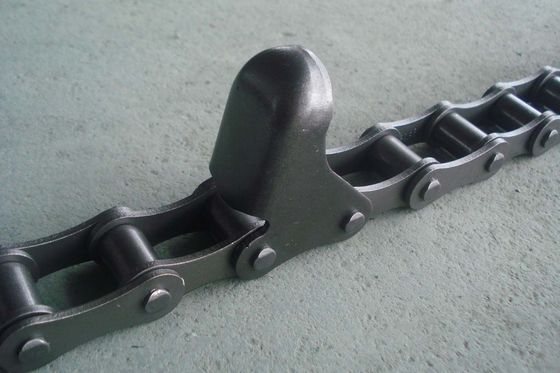

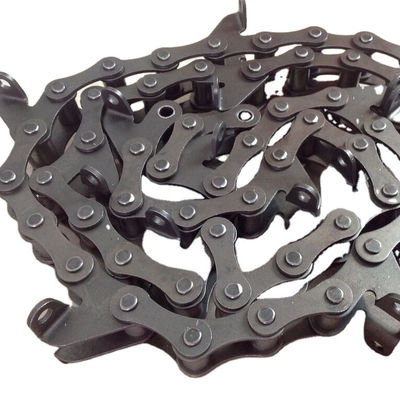

Rantai Mesin Beras Baja Karbon Rantai Penggerak Transmisi Rantai Pertanian
Spesifikasi
| DIN ISO Rantai No. | Melempar | d1 maks | b1 menit | jam maksimal | d2 maks | b2 maks | UTS | ATS | q kg/m |
| mm | mm | KN | KN | kg/m | |||||
| S32 | 29.21 | 11.43 | 15.88 | 13.4 | 4.45 | 26.7 | 8 | 9.6 | 0,918 |
| S42 | 34.93 | 14.27 | 19.05 | 19.7 | 7.01 | 34.2 | 26.7 | 32.04 | 1.835 |
| S45 | 41.4 | 15.24 | 22.23 | 17.2 | 5.74 | 36.9 | 17.8 | 21.36 | 1.605 |
| S52 | 38.1 | 15.24 | 22.23 | 17.2 | 5.74 | 36.9 | 17.8 | 21.36 | 1.811 |
| S55 | 41.4 | 17.78 | 22.23 | 17.2 | 5.74 | 36.9 | 17.8 | 21.36 | 1,865 |
| S62 | 41.91 | 19.05 | 25.4 | 17.2 | 5.74 | 40 | 26.7 | 32.04 | 2.171 |
| S77 | 58.34 | 18.26 | 22.23 | 25.8 | 8.92 | 43.3 | 44.5 | 53.4 | 2.685 |
| S88 | 66.27 | 22.86 | 28.58 | 26 | 8.92 | 49.7 | 44.5 | 53.4 | 3.223 |
| A550 | 41.4 | 16.7 | 19.81 | 19.05 | 7.16 | 34.5 | 39.1 | 46.92 | 1.776 |
| A620 | 42.01 | 17.91 | 24.51 | 19.05 | 7.16 | 41.5 | 39.1 | 46.92 | 2.438 |
| DIN ISO Rantai No. | F | B | K | W | H |
| mm | |||||
| S32 | 42.9 | 6.5 | 8.1 | 60 | 8.6 |
| S42 | 54 | 8.3 | 12.5 | 74 | 14 |
| S45 | 54 | 8.3 | 11.5 | 74 | 11.4 |
| S52 | 58.8 | 8.5 | 10 | 77.2 | 11.4 |
| S55 | 54 | 8.3 | 11.5 | 74 | 11.4 |
| S62 | 66.6 | 8.5 | 14.8 | 95 | 11.4 |
| S77 | 76.2 | 8.5 | 11.5 | 101 | 20.8 |
| S88 | 96.8 | 8.5 | 10 | 119 | 20.8 |
| Jenis | DIN ISO Rantai No. | α | T mm | S mm |
| C6E | CA550 | 20 ° | 3.2 | 55.6 |
| Jenis | DIN ISO Rantai No. | α | T mm | S mm |
| C6E | CA555 | 15° | 3.2 | 63.5 |
| Jenis | DIN ISO Rantai No. | α | T mm | S mm |
| C11E | CA550 | 15° | 3.2 | 63.5 |
| Jenis | DIN ISO Rantai No. | α | T mm | S mm |
| C13E | CA550 | 15° | 2.62 | 92 |
| CA620 | 15° | 3.2 | 92 |
Pengepakan Pengiriman Pengiriman
Rincian kemasan: rantai daun + polybag + kotak individual + kotak kayu
Rincian pengiriman:
